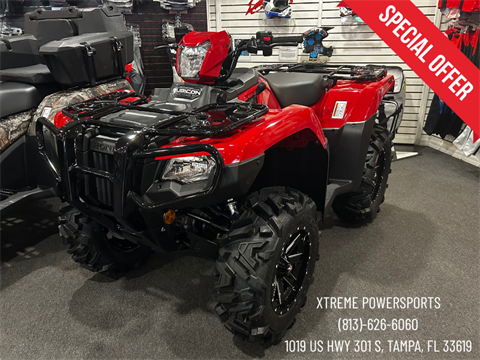

2025 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS
2025 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS - Image 2

2025 Honda FourTrax Foreman Rubicon 4×4 Automatic DCT EPS

Sold by
Xtreme Powersports
@ xtremepowersportstampa Ask owner

Every model in our FourTrax Foreman Rubicon 4×4 lineup is ready to work hard and play hard, and this year we’re offering three trim levels that give you a great combination of features: our FourTrax Foreman Rubicon 4×4 EPS with Electric Power Steering, our FourTrax Foreman Rubicon 4×4 DCT EPS that adds our exclusive Honda Automatic Dual Clutch Transmission and an option to choose TrueTimber® Atera camo, and our FourTrax Foreman Rubicon 4×4 DCT EPS Deluxe with aluminum wheels, color-matched suspension and painted bodywork. All three feature independent rear suspension (IRS) for a smooth ride over rough terrain. And all three also share the same reliable, proven 518cc Honda engine that punches way above its class when it comes to efficiency and power.

Original price was: $10,299.00.Current price is: $9,999.00.

×
Loading...
Added to wishlistRemoved from wishlist 0

Report Abuse
Category: Tag: Brand:
Xtreme Powersports
Xtreme Powersports

Preferred Vendors Direct Available

These vendors also offer this exact same product
Xtreme Powersports
Xtreme Powersports
Original price was: $10,799.00.Current price is: $10,499.00.
View Store

General Information

Manufacturer
Honda

Model Year
2025

Model
FourTrax Foreman Rubicon 4×4 Automatic DCT EPS

Model Code
TRX520FA6S

Stock Number
100392

Color
Hero Red

Brakes/Wheels/Tires

Brakes

Front – Dual 190 mm discs

Rear – Dual 170 mm discs

Tires

Front – 25 x 8-12

Rear – 25 x 10-12

Dimensions

Length
86 in.

Height
48.7 in.

Width
47.4 in.

Weight
Curb – 725 lb. (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)

Ground Clearance
9.7 in.

Wheelbase
50.9 in.

Seat Height
36.3 in.

Drivetrain

Transmission
Five-speed automatic dual-clutch with reverse and Low / Drive sub-transmission

Drive System
4×4

Drive
Direct front and rear driveshafts with TraxLok® and locking front differential

Engine

Engine
Four-stroke, OHV; two valves per cylinder, longitudinally mounted

Cooling
Liquid

Cylinders
Single

Displacement
518 cc

Bore x Stroke
3.8 x 2.8 in. (96 x 71.5 mm)

Compression Ratio
9.5:1

Clutch
Automatic

Fuel System
Programmed fuel injection (PGM-FI); 36 mm throttle body

Emissions
Meets current EPA off-road emissions standards

Starting
Electric with optional auxiliary recoil

Fuel Capacity
3.9 gal. including 1.3 gal. reserve

Operational

Suspension

Front – Independent double-wishbone; 7.3 in. travel

Rear – Independent dual-arm; 8.5 in. travel

Towing Capacity
1,322 lb.

Capacity

Front Rack – 99 lb.

Rear Rack – 187 lb.

Other

Additional Colors

Hero Red

TrueTimber® Atera Camo

Warranty
One year, transferable, limited

Loading...

Vendor Information

  • Store Name: Xtreme Powersports
  • Vendor: Xtreme Powersports
  • Address: 1019 S US Highway 301
    Tampa, FL 33619

Product Location

Added to wishlistRemoved from wishlist 0

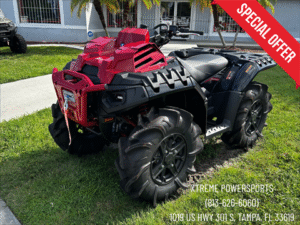

2025 Polaris Sportsman XP 1000 Mud Edition

2025 Polaris Sportsman XP 1000 Mud Edition

Original price was: $16,499.00.Current price is: $15,799.00.
4%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

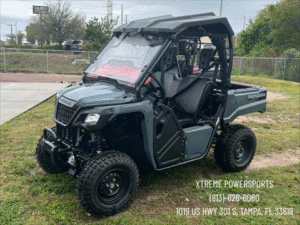

2025 Honda Pioneer 520

2025 Honda Pioneer 520

Original price was: $10,599.00.Current price is: $10,499.00.
1%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

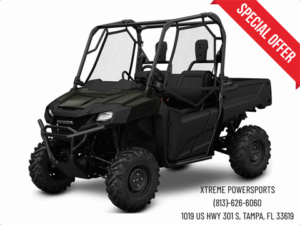

2024 Honda Pioneer 700

2024 Honda Pioneer 700

Original price was: $11,899.00.Current price is: $11,399.00.
4%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

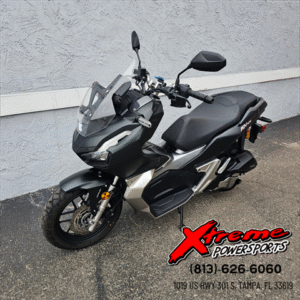

2021 Honda ADV150

2021 Honda ADV150

Original price was: $3,299.00.Current price is: $3,199.00.
3%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0
2021 Zero Motorcycles DS ZF7.2

2021 Zero Motorcycles DS ZF7.2

Original price was: $5,599.00.Current price is: $5,399.00.
4%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

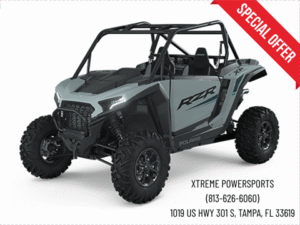

2025 Polaris RZR XP 1000 Sport
