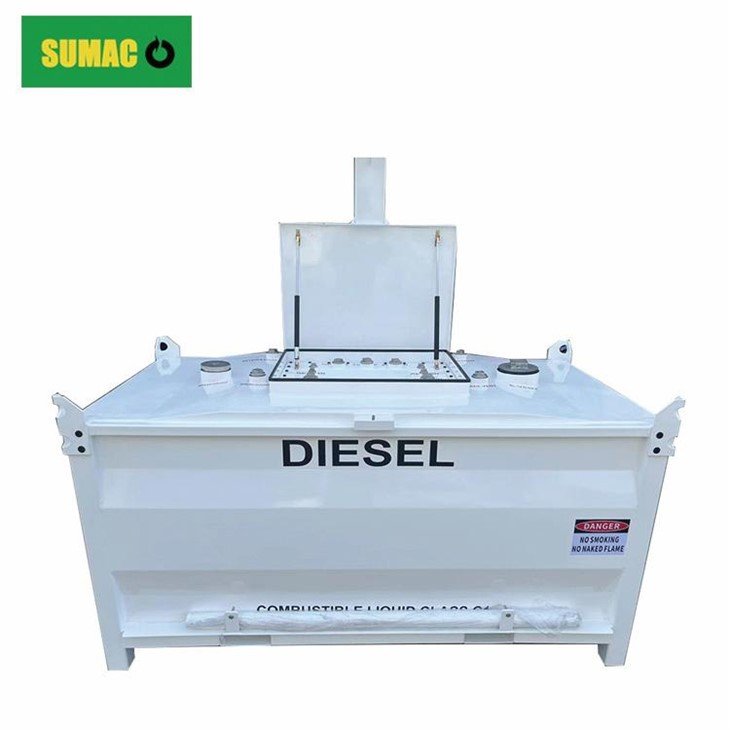

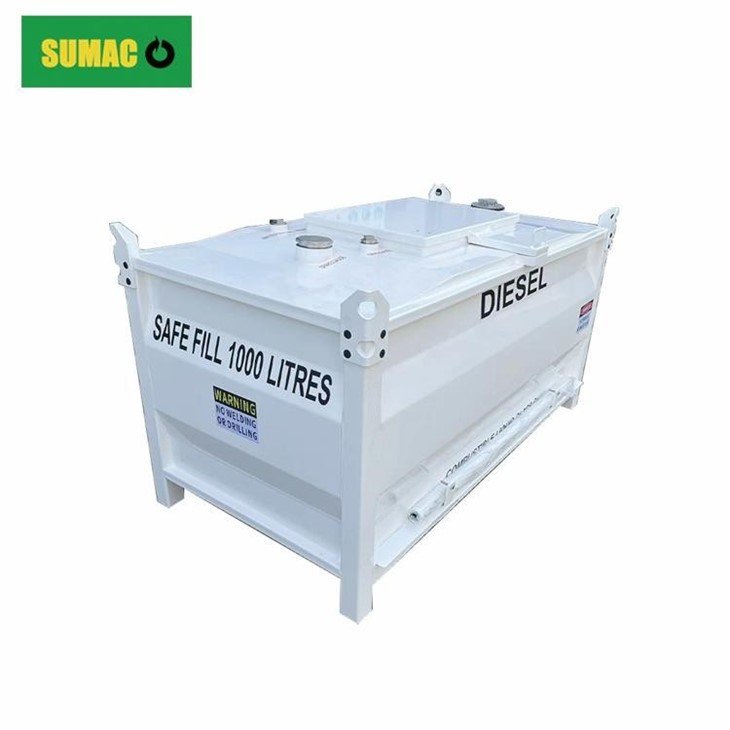

Double-wall Carbon Steel Self Bunded Fuel Oil Ibc Gasoline Petrol Tank Diesel Cube Tank

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of double-wall carbon steel self bunded fuel oil ibc gasoline petrol tank diesel cube tank in China. Please feel free to buy high quality double-wall carbon steel self bunded fuel oil ibc gasoline petrol tank diesel cube tank at competitive price from our factory. Introduction

Double-wall Carbon Steel Self Bunded Fuel Oil Ibc Gasoline Petrol Tank Diesel Cube Tank

Sumac Fuel tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks can travel with you, wherever you need to go, thanks to its two forklift pockets, which allow for mobility when they are empty. Since all connections are made through the top and are self-bunded due to the double wall design, there is no possibility of leakage into the surrounding area. Fuel tanks use a special outlet configuration that pulls from the interior floor to prevent the accumulation of any kind of dirt.

Technical Specification

Model

SU-1000L

Material

Carbon steel

Tank type

Storage and dispensing

Size

2100x1100x1120mm

Volume

1000 litres

Empty Weight

About 680kg

Test pressure

About 35Kpa

Feed/Discharging

1inch

Application

Waste fuel, petrol, waste oil, diesel, coolant, Any liquid,

other than a flammable liquid under normal temperature.

Features

· 2 Way forklift pockets.

· Comes complete with fluid level dipstick, vent pipe and fittings.

· Lockable containment area for pump, hose and nozzle storage.

· The number of standard feed and return line ports allow for the connection of up to 3 x generators or industrial equipment simultaneously.

· Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.

· With manhole- Easy maintenance and cleaning of carbon steel inner tank.

Optional Fittings

About Sumac

Our Customers

Application

Backup Power Generation: In order to store fuel for emergency power generation during blackouts or in distant locations when grid power is unavailable, diesel generators frequently feature built-in fuel tanks or require external diesel fuel tanks.

Marine: Ships, boats, and yachts all require diesel fuel tanks as standard equipment. The gasoline needed for onboard systems and propulsion is kept in these tanks.

Diesel fuel tanks are utilized in isolated power facilities that have little or no access to the grid’s electricity supply. These stations use diesel generators to produce energy, therefore thus need a lot of fuel storage space.

Mobile Refueling Stations: In isolated areas or during emergencies, vehicles, machinery, and equipment can be refueled on-the-go using portable diesel fuel tanks or tanker trucks.

FAQ

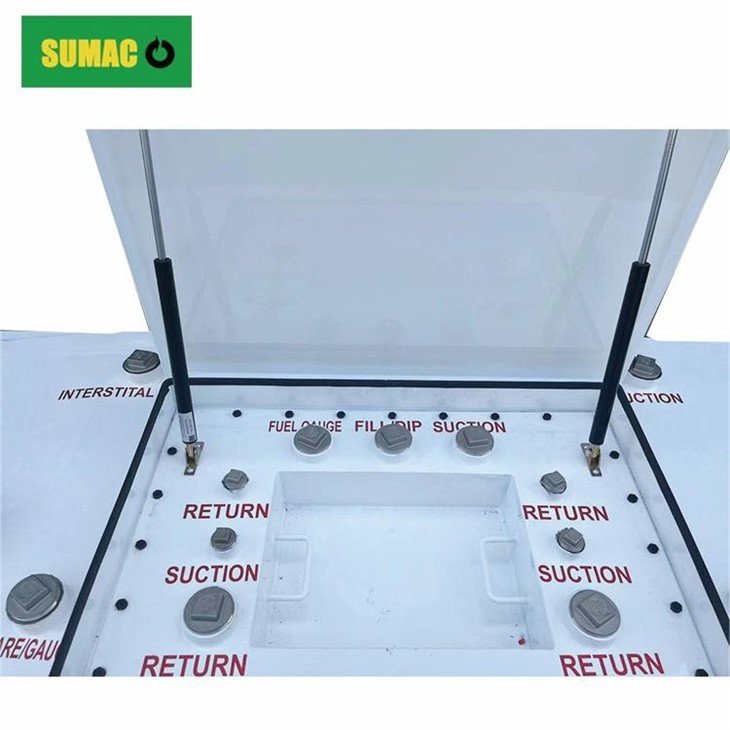

Q. What is your standard configuration for connections?

A. Fill Dip, Inlet, Fuel Gauge, Outlet: DN25 or customized; E-Vent, FreVent: DN50

Q. Can we specify the colour of the tanks and are they painted or powder coated?

A. Yes, can specify colour, and our tanks are powder coated.

Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?

A. Oil tank with inspection port.

Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity.

A. Yes.

Q: Are your oil tanks rust-proof?

A: Yes, our paint is electrostatic spraying of polyester powder, we called powder coating paint, oil resistance, antirust treatment.

Q: Does the fuel tank has lockable cabinets for pump?

A: Yes.
