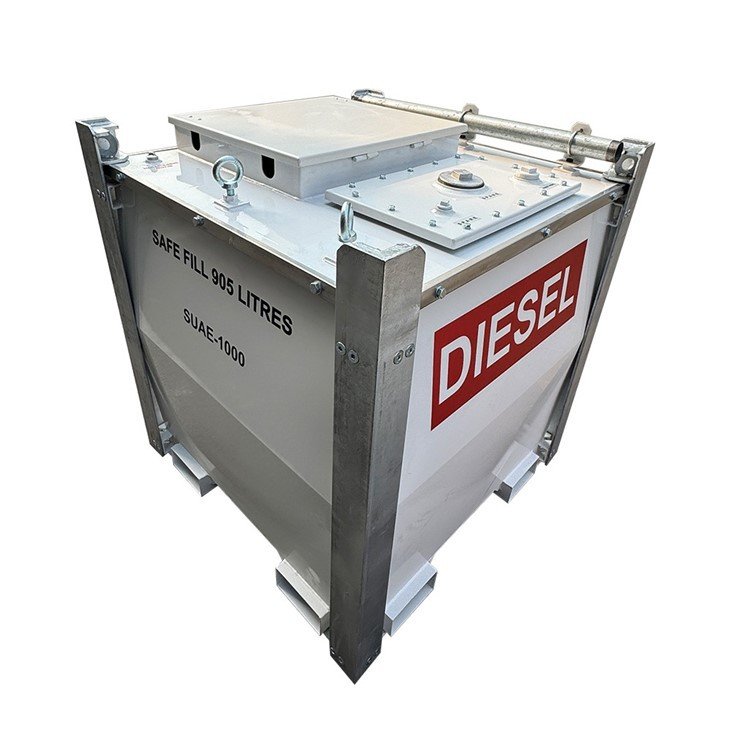

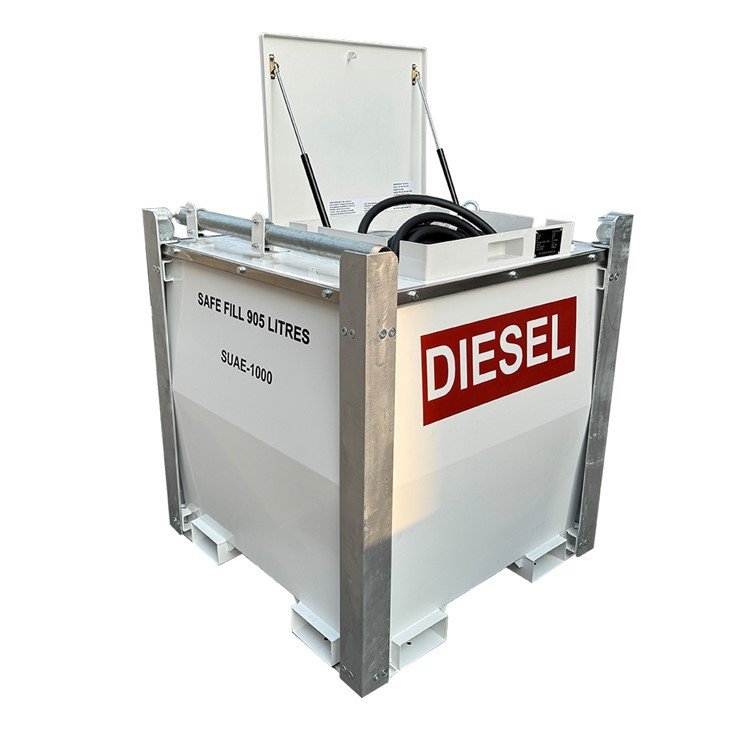

Sumac Portable Gas Station 1000 Litre Self Bunded Transfer FuelCube Diesel Portable Mobile Oil Tank With 12V Pump Kit

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of sumac portable gas station 1000 litre self bunded transfer fuelcube diesel portable mobile oil tank with 12v pump kit in China. Please feel free to buy high quality sumac portable gas station 1000 litre self bunded transfer fuelcube diesel portable mobile oil tank with 12v pump kit at competitive price from our factory. Introduction

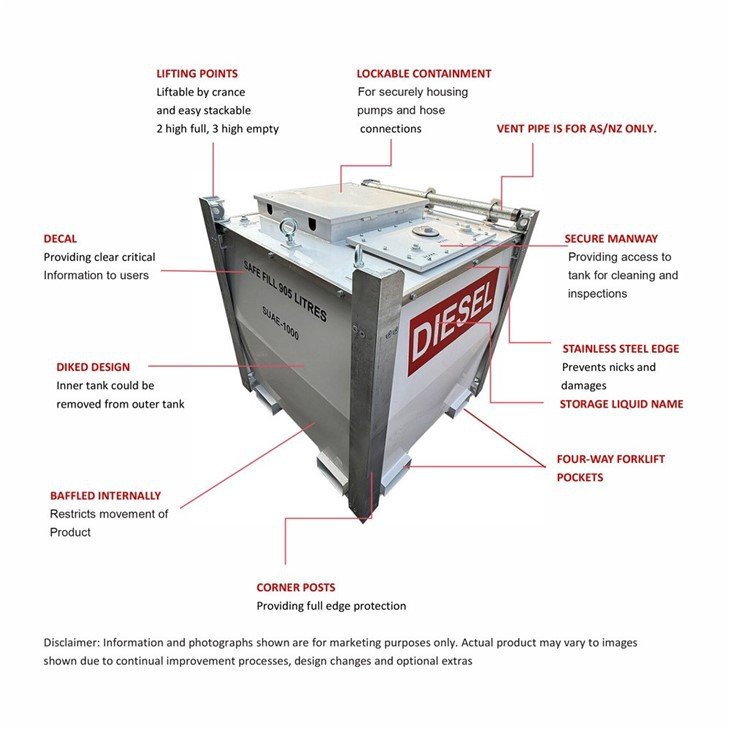

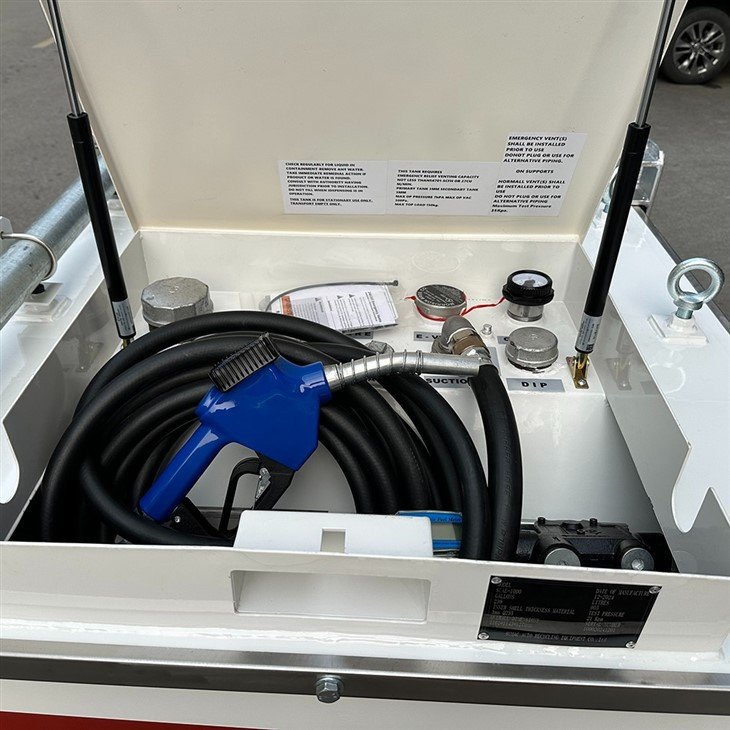

Sumac SUAE series cube self bunded tanks come in various sizes. We have a Fuel Tank suitable for all your fuel storage requirements. Sumac’s new fuel cube tanks come with lockable containments to keep your parts and connections secure and out of the elements. Tanks also come equipped with convenient lifting points to simplify crane handling and positioning your tank.

Our double-walled tanks are designed as integral secondarycontainment and therefore do not require independent bunds forleak containment.Double-walled tank = SFL primary tank +interstitial space + secondary external tank.

Highly secure and extremely hard-wearing, our Fuel Cubes Tanks are 110% bunded and fully compliant with current environmental regulations.

Technical Parameters

Model
SUAE-1000
SUAE-2000
SUAE-3000
SUAE-4500
SUAE-7000

Capacity

(Normal/Safe fill (95%))
950/905 L
2063/1960 L
2850/2710 L
4460/4240 L
7200/6840 L

Dimension (LxWxH)
1145x1145x1275mm
2245x1145x1275mm
2245x1520x1275mm
2245x2312x1275mm
3945x2210x1195mm

Empty Weight
About 450Kg
About 750Kg
About 868Kg
About 1155Kg
About 2280Kg

Material
Carbon steel

Tank type
Storage and dispensing

Testing pressure
About 35Kpa

Fill Dip / Fuel Gauge, Inlet, Outlet
DN40/DN50/80/DN100

E-Vent, Free Vent
DN50/DN80/DN100

Logo/Packing
If you need to customize the Logo, please send an inquiry

Application
Fuel, petrol,boil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature.

Tank Connections

Why Choose Us

Precautions

Safe use: When using metal steel portable fuel tanks, strictly abide by the safety operating procedures, avoid using or storing near open flames, high temperatures or flammable materials, and prevent fire or explosion accidents.
Static electricity protection: Since metal materials are prone to static electricity, during refueling and use, take anti-static measures, such as grounding the fuel tank and using an anti-static refueling gun, to prevent static electricity from causing fuel fire or explosion.
Regular inspection: Check the fuel tank regularly to see if there is leakage, deformation, corrosion, etc. If there is a problem, replace or repair it in time to ensure the safety performance of the fuel tank.
Correct storage: When storing the fuel tank, choose a well-ventilated, dry, and cool place, away from fire and heat sources, and seal the fuel tank to prevent fuel volatilization and impurities from entering.

FAQ

Q. Can we specify the colour of the tanks and are they painted or powder coating paint?

A. Yes, can specify colour, powder coating paint.

Q. Is there any way to check for fluid between the skins (1st and 2nd layer)?

A. Oil tank with inspection port.

Q. Is there a suction tube on the outlet port for evac of the waste oil?

A. Yes.

Q. For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?

A. Yes.

Q. Can I do your agent in our country or some district?

A. Yes, if you quantity is enough, no problem, the 40HQ container is okay.
