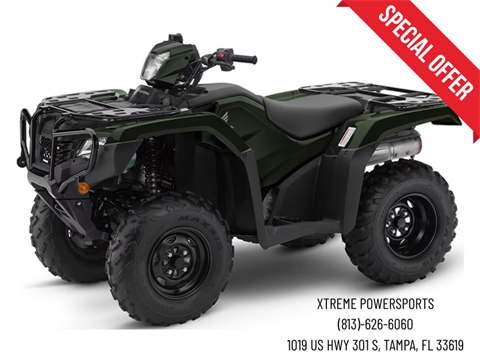

2025 Honda FourTrax Foreman 4×4 EPS

@ xtremepowersportstampa Ask owner

Start off strong and work harder with the Honda FourTrax Foreman 4×4. Designed for those who demand more from their ATV, it boasts a robust 518cc engine, perfect for serious work and weekend adventures in the woods. The swingarm rear suspension makes towing easy, while this four-wheeler’s long-travel suspension and plush seat ensure all-day riding comfort. Sturdy steel front and rear racks are designed to integrate seamlessly with Honda Pro-Connect™ cargo boxes and accessories, giving you the versatility to tackle any challenge. This ATV adapts to your needs and is available in two trims—standard and EPS, featuring Honda’s speed- and torque-sensitive Electric Power Steering. Choose from Hero Red, Black Forest Green, and TrueTimber® Atera Camo for 2025. Experience the performance, comfort, and versatility only the FourTrax Foreman 4×4 can deliver.

Original price was: $8,899.00.Current price is: $8,599.00.

×
Loading...
Added to wishlistRemoved from wishlist 0

Report Abuse

General Information

Manufacturer
Honda

Model Year
2025

Model
FourTrax Foreman 4×4 EPS

Model Code
TRX520FM2S

Stock Number
N/A

Color
Black Forest Green

Brakes/Wheels/Tires

Brakes

Front – Dual 190 mm discs

Rear – 160 mm sealed mechanical drum

Tires

Front – 25 x 8-12

Rear – 25 x 10-12

Dimensions

Length
82.9 in.

Height
47.8 in.

Width
47.4 in.

Weight
Curb – 648 lb. (includes all standard equipment, required fluids and a full tank of fuel)

Ground Clearance
7.5 in.

Wheelbase
50 in.

Seat Height
34.5 in.

Drivetrain

Transmission
Five-speed with reverse

Drive System
4×4

Drive
Direct front and rear driveshafts with TraxLok® and front differential lock

Engine

Engine
Four-stroke, OHV; two valves per cylinder, longitudinally mounted

Cooling
Liquid

Cylinders
Single

Displacement
518 cc

Bore x Stroke
3.8 x 2.8 in. (96 x 71.5 mm)

Compression Ratio
9.5:1

Clutch
Automatic

Fuel System
Programmed fuel injection (PGM-FI); 36 mm throttle body

Emissions
Meets current EPA off-road emissions standards

Starting
Electric with optional auxiliary recoil

Fuel Capacity
3.9 gal. including 1.3 gal. reserve

Operational

Suspension

Front – Independent double-wishbone; 7.3 in. travel

Rear – Swingarm with single shock; 7.3 in. travel

Towing Capacity
848 in.

Capacity

Front Rack – 88 lb.

Rear Rack – 176 lb.

Other

Additional Colors

Hero Red

Black Forest Green

TrueTimber® Atera Camo

Warranty
One year, transferable, limited

Loading...

Vendor Information

  • Store Name: Xtreme Powersports
  • Vendor: Xtreme Powersports
  • Address: 1019 S US Highway 301
    Tampa, FL 33619

Product Location

Added to wishlistRemoved from wishlist 0
2025 Honda CBR500R

2025 Honda CBR500R

Original price was: $7,499.00.Current price is: $7,399.00.
1%
(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

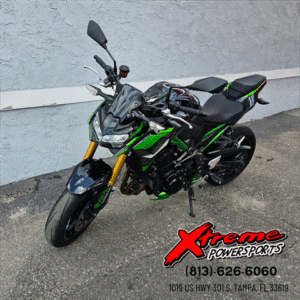

2024 Kawasaki Z900 SE ABS

2024 Kawasaki Z900 SE ABS

Original price was: $10,999.00.Current price is: $9,999.00.
9%
(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

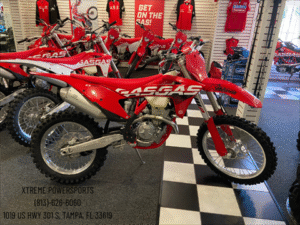

2023 GASGAS EX 350F
