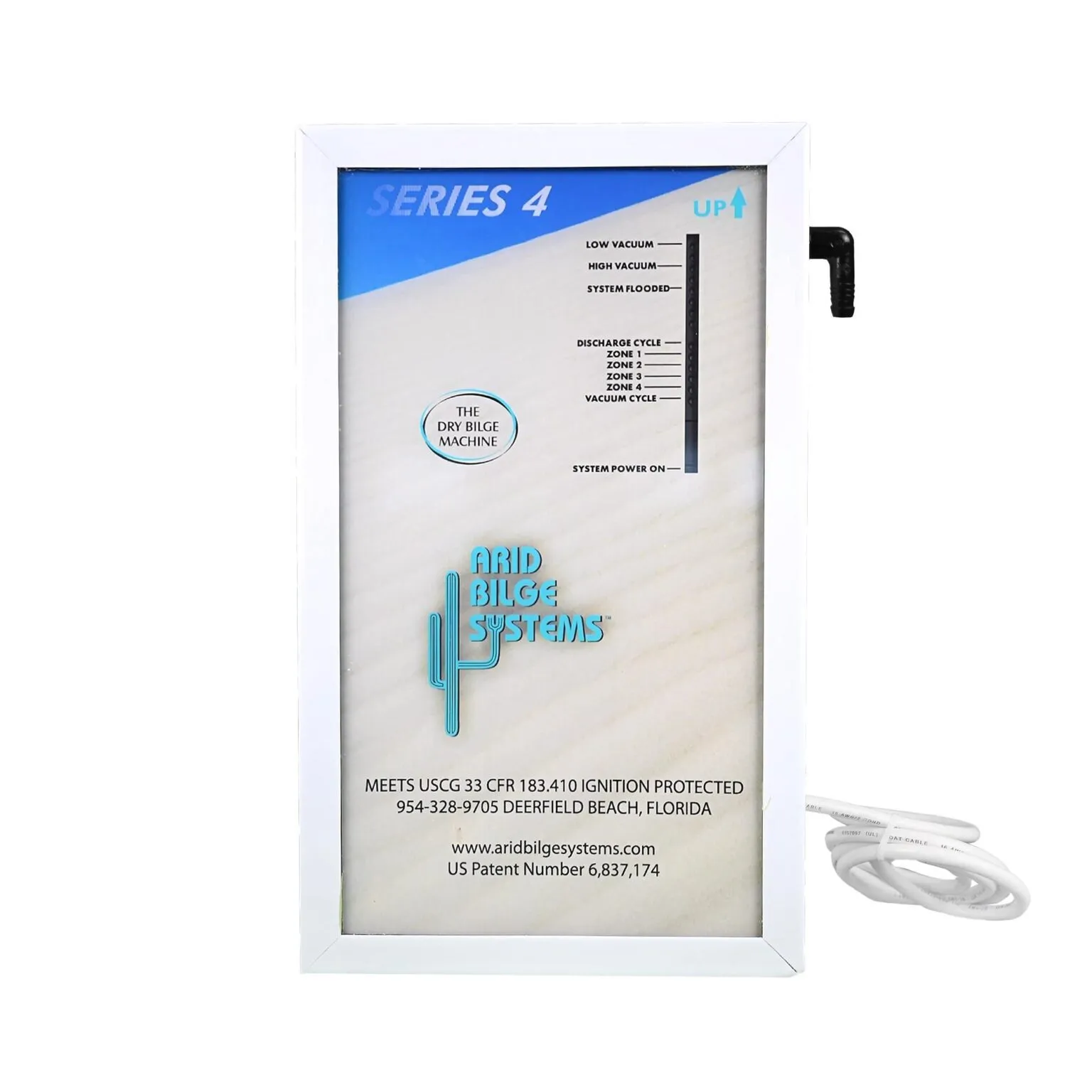

Arid Bilge System Series 4

Series 4 units are available with 4 to 8 independently controlled intake ports
Arid Bilge is automatic, reliable, flexible, and best of all, it really works.

• Eliminate the #1 source of on board odors
• Lower on board humidity and prevent condensation damage
• Find small leaks that now leave trails through a dry bilge
• Stop mold and mildew before it starts to grow
• Enhance the vessel’s resale value
• Optional USCG approved 15ppm oily water monitored systems available

You will notice the Arid Bilge difference within 24 hours of installation.

Height – 15 inches / 38 centimeters

Box width – 9 inches / 23 centimeters

Depth – 7.5 inches / 19 centimeters

Box dry weight – 15 pounds / 7 kilograms base unit

Intake tubing – 3/16” Polyethylene tubing 200 feet for 4 zone, + 100 feet for 5 & 6 zone, + 200 feet for 7 & 8 zone

Unit Maximum Expected Flow Rate – 11 US gallons / 39 liters per hour

Power – Choose 12 volt DC or 24 volt DC version

Power draw – 0.09 amp (90 milliamps) average standby draw, 0.8 amps average run draw at 12 volt DC with one active zone

Certifications – This unit meets USCG 33CFR 183.410 ignition protection

Intake ports – 3/16” Alkon push lock with solenoid valves, soft expandable tubing for pinch valves

Discharge port – 1/2″ barbed fitting

Control – PLC Direct Logic 05 Koyo D0-05 processor, software proprietary.

Compressor / vacuum pump – Schwarzer Precision

Main unit material – Air injected white PVC plastic

Limited warranty – One year parts and labor.

Face – Clear Lexan with back surface applied graphics with LED indicator lights

Available Upgrades

Standard Solenoid Valves, Standard Solenoid Valves and Hour Meters, Pinch Valves, Pinch Valves and Hour Meters

Pickups – Recommended selection, Custom selection
