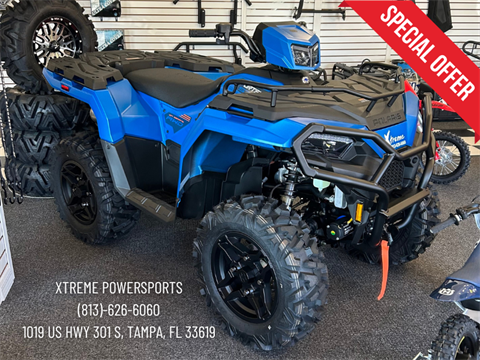

Name: 2025 Polaris Sportsman 570 Trail - Fuel1Direct
Price: 9799.00 USD
Availability: InStock

General Information

Manufacturer

Polaris

Model Year

2025

Model

Sportsman 570 Trail

Model Code

A25SHY57AN

Stock Number

N/A

Color

Electric Blue

Brakes/Wheels/Tires

Brakes

Front / Rear – Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot

Parking – Park In-Transmission / Lockable Hand Lever

Engine Braking System (EBS) – Equipped

Active Descent Control – Equipped

Wheels

14 in. (35.6 cm) Aluminum

Tires

Front – 26 x 8-14; Duro

Rear – 26 x 10-14; Duro

Dimensions

Length

Overall – 83 in. (210.8 cm)

Height

Overall – 47 in. (119.4 cm)

Width

Overall – 48 in. (121.9 cm)

Weight

Estimated Dry – 873 lb. (396 kg)

Ground Clearance

11.5 in. (29 cm)

Wheelbase

50.5 in. (128.3 cm)

Seat Height

33.25 in. (84.5 cm)

Drivetrain

Transmission

Automatic PVT P / R / N / L / H In-line Shifting

Drive System

4×4

Drive

One Touch On-Demand AWD / 2WD

Electrical

Battery

340 CCA

Instrumentation

All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light

Lighting

LED POD, LED Bumper Lights, Dual LED Brake lights / Taillights

Engine

ProStar 4-Stroke DOHC

Cooling

Liquid

Cylinders

Single

Horsepower

44 hp

Displacement

567 cc

Fuel System

Electronic Fuel Injection

Fuel Capacity

4.5 gal. (17 l)

Operational

Suspension

Front – Sealed Arched Dual A-Arm

Front Travel – 8.9 in. (22.6 cm)

Rear – Sealed Dual A-Arm, IRS

Rear Travel – 9.5 in. (24.1 cm) Travel

Steering

Electronic Power Steering – Multi Select EPS

Seating

1 Person Capacity

Hitch

Standard 1.25 in. (3.2 cm) Receiver

Towing Capacity

1,350 lb. (612 kg)

2,500 lb. Polaris HD Winch

Load Capacity

Front Rack – 90 lb. (40.8 kg)

Rear Rack – 180 lb. (81.6 kg)

Cargo System – Lock & Ride Compatible 5 gal. (18.9 l) Front Dry Storage, 6 gal. (27.3 l) Rear Dry Storage

Capacity

Payload – 485 lb. (220 kg)

Other

Additional Colors

Electric Blue

Onyx Black

Includes

Front Trail Bumper, 12V Power Plug, Pre-Wired for Hand and Thumb Warmers, In Pod Battery Charger, Painted Plastics, Front and Rear A-Arm Guards
