Rubber Floor Tile Production Line

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of rubber floor tile production line in China. Please feel free to buy high quality rubber floor tile production line at competitive price from our factory. 1. Features

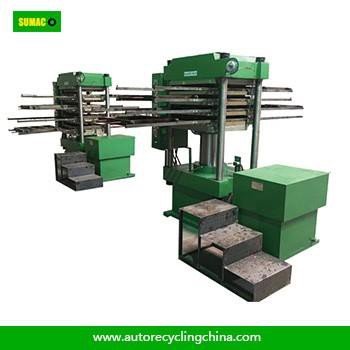

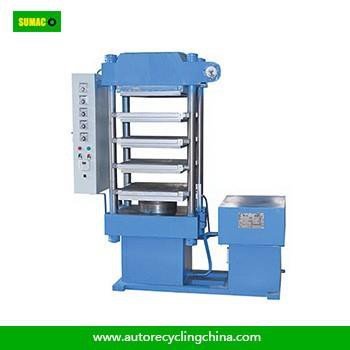

● Rubber tile making machine is used to make various types of floor tiles with different diamter as you required.With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.● We can customize the moulds according to your special requirments.● This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.● The working layer can be designed as customer’s request, 2, 4, 6, etc● We have got CE, ISO, SGS.2. Introduction1). ItemFour Columniation. Mainframe, crossbeam and oil jointing together.2). Technical DataPressure. (max)0.5MN=50TonHeating plate50x550mmProduct size500x500mmLayer distance150~180mmWorking layer4 layersDia PlungerΦ200mmPlunger stroke450mmMachine Power23KwPlate temperature≤200°C3). Temperature control
Heated by electronic resistance. Each heating plate fixes an electronic self-regulating instrument.Temperature be shown and controlled by instrument.4). Mould4 pcs of square mould(used to make 500x500mm rubber tile with thickness 15-25mm or 35-50mm) and 8 pcs of under-mould (loading materials for preparation).
3. End product
