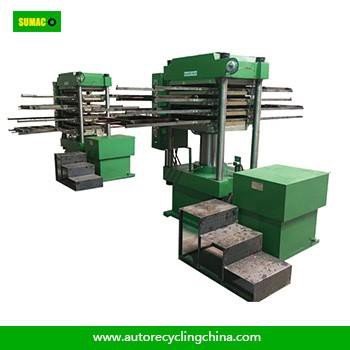

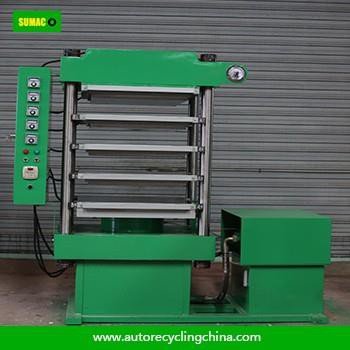

Rubber Interlocking Tile Making Machine

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of rubber interlocking tile making machine in China. Please feel free to buy high quality rubber interlocking tile making machine at competitive price from our factory. 1. Features● Rubber tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.● We can customize the moulds according to your special requirments. ● This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.● The working layer can be designed as customer’s request, 2, 4, 6, etc● We have got CE, ISO, SGS.2. Introduction1). ItemFour Columniation. Mainframe, crossbeam and oil jointing together.2). Technical DataModelXLB-D 550x550Max pressure(Ton)50 Heating plate(mm)550x550Product size(mm)500x500Layer distance(mm)150~180workig layer4 layersDia plunger(mm)Φ200Plunger stroke(mm)450Total power(Kw)23Plate temperature(°C)=<2003). Temperature controlHeated by electronic resistance. Each heating plate fixes an electronic self-regulating instrument.Temperature be shown and controlled by instrument.4). Mould4 pcs of square mould (used to make 500x500mm rubber tile with thickness 15-25mm or 35-50mm) and 8 pcs of under-mould (loading materials for preparation).3. Application     4. TO MAKE SURE BETTER QUALITY1) We use motor from Siemens,ABB/WEG is ok for your requirement2) We adopts electrical control parts from  CHNT/Schneider/Delixi3) We use bearings from SKF Hot Tags: rubber interlocking tile making machine, China rubber interlocking tile making machine manufacturers, suppliers, factory
