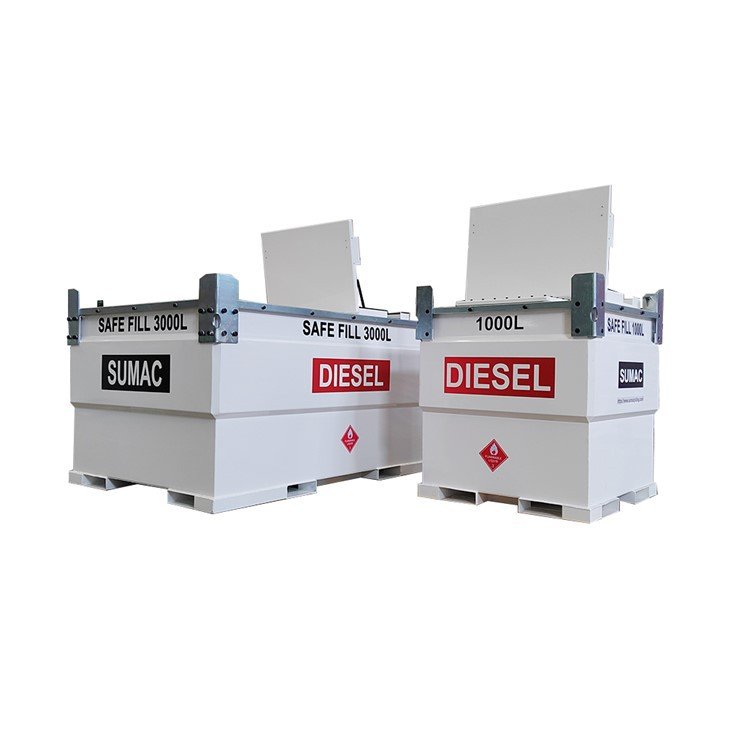

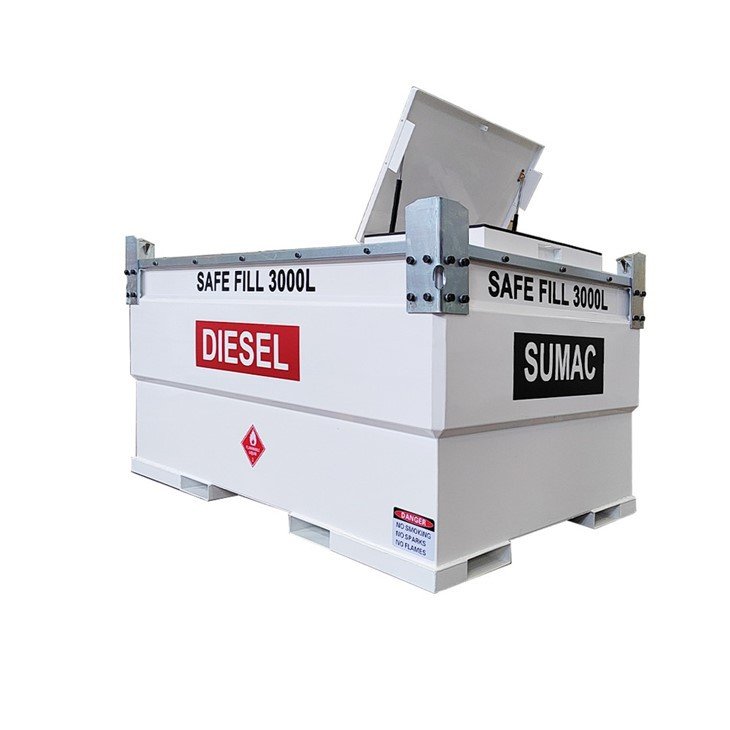

Portable Mini Mobile Fuel Station Cube Diesel Transfer Tank For Farm Refueling

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of portable mini mobile fuel station cube diesel transfer tank for farm refueling in China. Please feel free to buy high quality portable mini mobile fuel station cube diesel transfer tank for farm refueling at competitive price from our factory. Introduction

Portable mini mobile fuel station cube diesel transfer tank for farm refueling

SUMAC has designed an efficient, cost-effective storage system that provides a practical and safe solution for businesses to store and manage liquid waste.

A versatile way to store flammable liquids (such as diesel, gasoline, oil, coolant, etc.) and enhance fuel management and dispensing is provided by the NW Series fuel IBC tank with fuel pump. Look for Sumac if you’re looking for an IBC tank that is directly sold by the manufacturer that holds gasoline or diesel fuel.

Fuel cube tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks are mobile and can go with you, wherever you are and whenever you need them, thanks to their four forklift pockets.

Use Long cycle time, direct sales at factory prices, and Sumac technical team provides you with professional after-sales service! Contact us anytime if you need anything!

Technical Parameters

Model

NW-1000

NW-2000

NW-3000

NW-4000

NW-5000

Material

Carbon steel, double wall

Tank type

Storage and dispensing

Dimension

1145x1140x1300mm
2320x1145x1285mm
1570x2320x1285mm

2337x2337x1143mm

2337x2311x1321mm

Capacity

(Normal/Safe fill (95%))

950/900 L

2090/1987 L

2980/2831 L

3785/3596 L

4600/4368 L

Empty Weight

About 440Kg

About 824Kg

About 1042Kg

About 1580Kg

About 1690Kg

Test pressure

About 35Kpa

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent

DN50

Features

All seams are welded to exacting standards.

4 x way forklift pockets – Quick and easy maneuvering and mobility.

The tanks can come complete with fluid level dipstick, vent pipe and fittings.

Stackable, and with lockable lid and manhole.

Supplied with all required statutory decals. Put on your logo is also available.

Lockable containment area for pump, hose and nozzle storage.

Designed to be stacked for storage and transport when full and empty oil.

Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.

Removable manhole – Easy maintenance and cleaning of carbon steel inner tank.

Tank Connections

Optional Fittings

Application

About Us

FAQ

Q: Is the fuel tank easy for land transport?

A: Yes.

Q: Does the fuel tank has lockable cabinets for pump?

A: Yes.

Q: Can it come with fuel pump?

A: Yes, we can equip with different kinds of fuel pump according to customer needs.

Q: Does the tank come with forklift pockets?

A: Yes. 4 Way forklift pockets.

Q: Is it with lifting lugs?

A: Yes. Galvanized Lift Full Crane Lugs on Each Corner.

Q: Is the tank easy to shipment?

A: Yes, the height of our fuel tank is designed according to the size of the container and can be stacked.
