Rubber Tile Vulcanizer

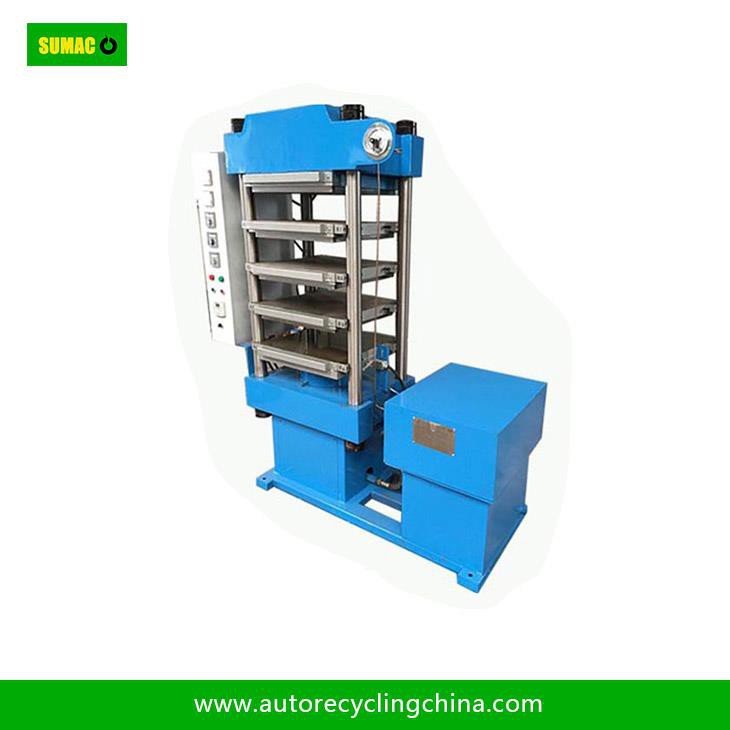

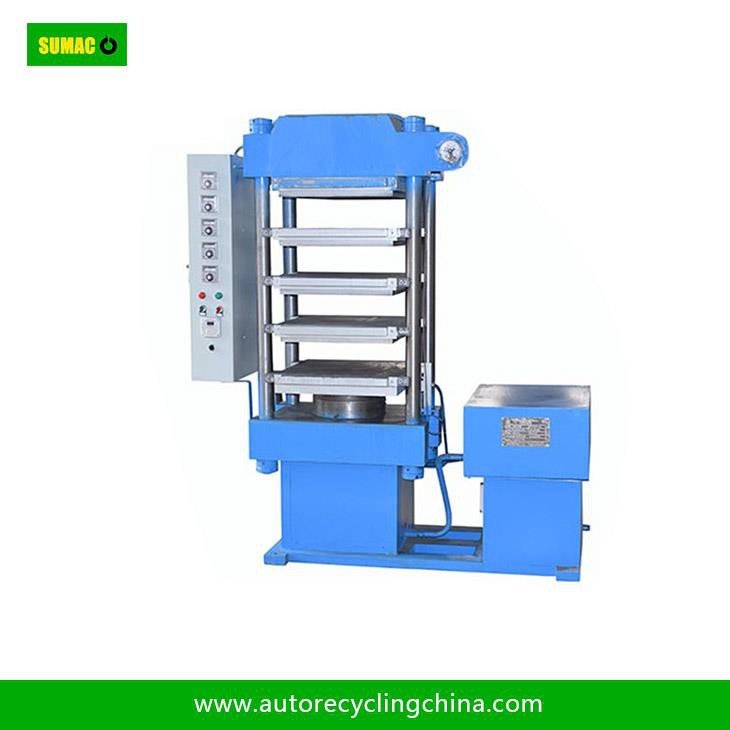

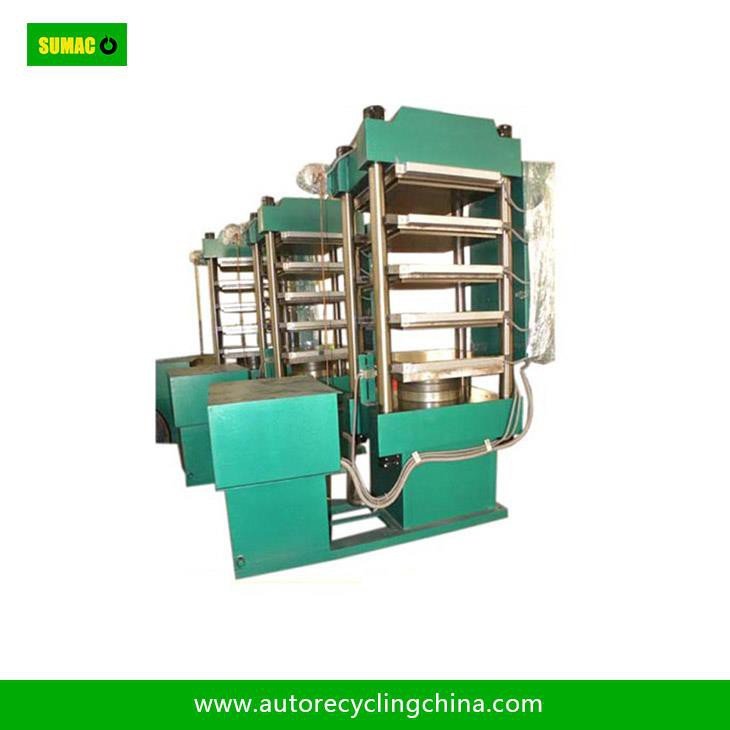

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of rubber tile vulcanizer in China. Please feel free to buy high quality rubber tile vulcanizer at competitive price from our factory. XLB-D 550X550 Rubber tile making machineIntroduction Rubber tile making machine is used to make various types of floor tiles with different dimension and shape as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds. Main Technical ParameterModelXLB-D 550X550Max Pressure  (Ton)50 Heating plate (mm)550×550 Product size (mm)500×500 Layer distance (mm)150~180 Working layer4 layersDia Plunger (mm)Φ200 Plunger stroke (mm)450 Total Power (Kw)23 Plate temperature (°C)≤200

Model XLB-D750x750 Pressure. (max)1MN=100TonHeating plate750x750mmMax Tile Size700x700mmLayer distance150~180mmWorking layer4 layersDia PlungerΦ200mmPlunger stroke450mmMachine Power34.5KwPlate tem perature≤200℃Dimension1800x800x2100mmWeight 3500kg
Model XLB-D800x800 Pressure. (max)1MN=100TonHeating plate800x800mmMax Tile Size750x750mmLayer distance150~180mmWorking layer3layersDia PlungerΦ200mmPlunger stroke450mmMachine Power29KwPlate tem perature≤200℃Dimension1800x850x2100mmWeight 3500kg
Pressure. (max): 160TonHeating plate: 1150x1150mmProduct size: 1000x1000mmLayer distance: 150~180mmWorking layer: 2 layersDia Plunger: Φ360mmPlunger stroke: 450mmMachine Power: 45KwPlate temperature: ≤200℃  3.Advantage◆  All presses are supplied with complete hydraulic pumping unit in compact design including electrical controller box . ◆  The main parts, pistons, are made of cold and hard alloys, abrasion index can reach 100%. With a main oil seal, its service life can reach 5 years without change.◆   The daylights can equipped with moulds having different widths and profiles. The heating method is electric heating. 4.Workshop
