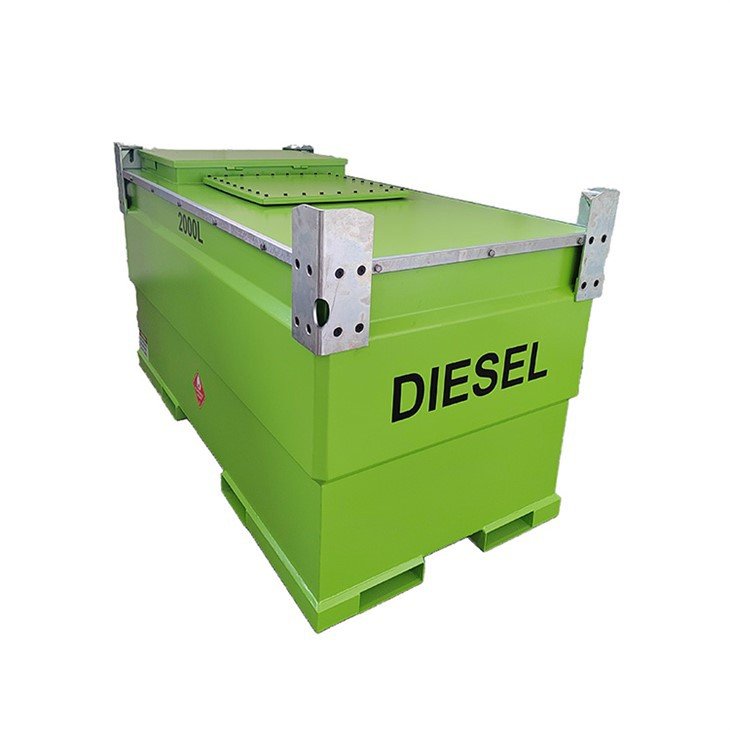

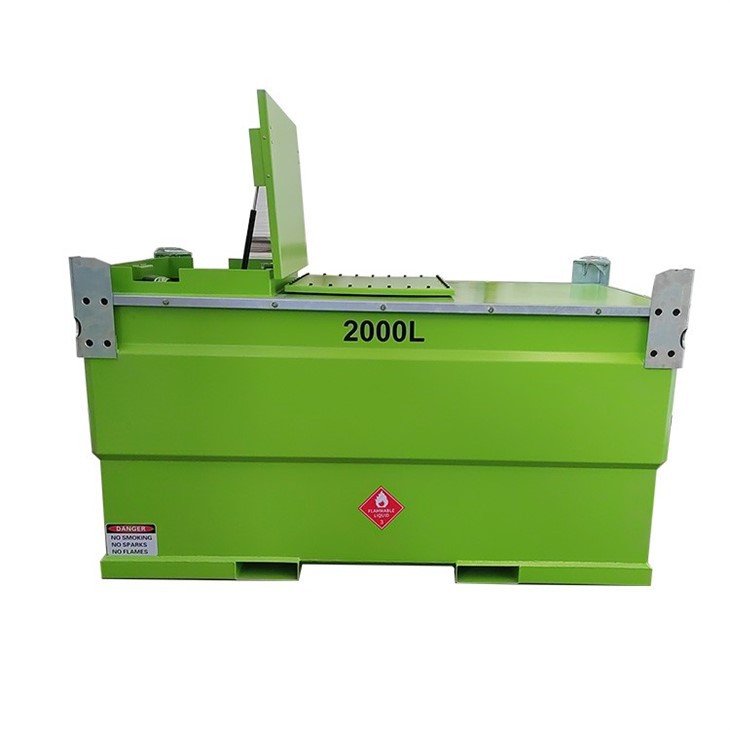

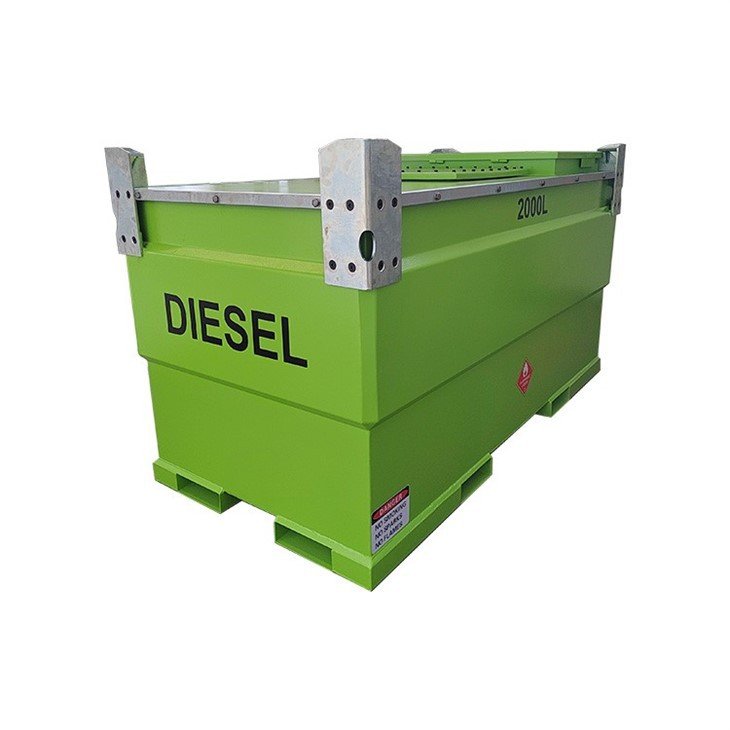

Carbon Steel Square Shape Diesel Fuel Storage Tank Gasoline Oil Cube Tank

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of carbon steel square shape diesel fuel storage tank gasoline oil cube tank in China. Please feel free to buy high quality carbon steel square shape diesel fuel storage tank gasoline oil cube tank at competitive price from our factory. Introduction

Carbon Steel Square Shape Diesel Fuel Storage Tank Gasoline Oil Cube Tank

NW Series fuel IBC tank with fuel pump offers a flexible solution to store combustible liquid (diesel, gasoline, oil, coolant, etc.) and improve fuel dispensing and management solutions. If you’re looking for a petrol diesel fuel IBC tank sold directly by the manufacturer, look for Sumac.

Sumac Fuel tanks can provide you greater flexibility and help you save important time because they are made to connect to equipment and deliver fuel simultaneously. Oil tanks are mobile and can go with you, wherever you are and whenever you need them, thanks to their four forklift pockets.

Use Long cycle time, direct sales at factory prices, and Sumac technical team provides you with professional after-sales service! Contact us anytime if you need anything!

Technical Parameters

Model

NW-1000

NW-2000

NW-3000

NW-4000

NW-5000

Material

Carbon steel, double wall

Tank type

Storage and dispensing

Dimension

1145x1140x1300mm
2320x1145x1285mm
1570x2320x1285mm

2337x2337x1143mm

2337x2311x1321mm

Capacity

(Normal/Safe fill (95%))

950/900 L

2090/1987 L

2980/2831 L

3785/3596 L

4600/4368 L

Empty Weight

About 440Kg

About 824Kg

About 1042Kg

About 1580Kg

About 1690Kg

Test pressure

About 35Kpa

Fill Dip, Inlet, Fuel Gauge, Outlet

DN40

E-Vent, Free Vent

DN50

Features

All seams are welded to exacting standards.

4 x way forklift pockets – Quick and easy maneuvering and mobility.

The tanks can come complete with fluid level dipstick, vent pipe and fittings.

Stackable, and with lockable lid and manhole.

Supplied with all required statutory decals. Put on your logo is also available.

Lockable containment area for pump, hose and nozzle storage.

Designed to be stacked for storage and transport empty.

Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting ears at each corner.

Tank Connections

Optional Fittings

Application

Fuel tanks, also known as portable fuel tanks or cube fuel tanks, are a versatile storage solution commonly used in a variety of industries and applications. Here are some typical applications:

Emergency Backup Power: Fuel tanks can serve as backup fuel storage for emergency generators in facilities such as hospitals, data centers, telecommunications facilities, and critical infrastructure sites. They ensure these facilities have a continuous supply of fuel to power critical equipment during power outages or emergencies.
Marine Applications: Fuel tanks are used in marine applications to store diesel fuel for ships, yachts and other vessels. They can be installed at a dock or on a vessel, providing a convenient refueling option for marine engines, keeping the vessel fueled while docked or at sea.
Events and Festivals: Fuel tanks are often used at outdoor events, festivals, and concerts to power generators, food trucks, and other equipment. Their portability and ease of use make them an ideal fuel storage solution for temporary facilities where traditional gas stations may be restricted.

About Us

FAQ

Q: Are your oil tanks rust-proof?

A: Yes, our paint is electrostatic spraying of polyester powder, we called powder coating paint, oil resistance, antirust treatment.

Q: Does the fuel tank has lockable cabinets for pump?

A: Yes.

Q: Can it come with fuel pump?

A: Yes, we can equip with different kinds of fuel pump according to customer needs.

Q: Does the tank come with forklift pockets?

A: Yes. Four-Way forklift pockets.

Q: Is it with lifting lugs?

A: Yes. Galvanized Lift Full Crane Lugs on Each Corner.

Q: Is the tank easy to shipment?

A: Yes, the height of our fuel tank is designed according to the size of the container and can be stacked.

Q: Can the tank be customized?

A: Yes, Sumac has a professional design and engineering team that can customize the tank according to customers requirements.
